8770 Regulators
Model：8770
8770 is a sturdy and durable regulator. Pneumatically balanced SK500 second stage. Adjustment knob, once set by the diver, provides consistent airflow at any depth. They also come standard with a dive/pre-dive switch and a super comfortable orthodontic mouthpiece. This latest edition though has a new pneumatic valve providing super smooth breathing performance in any condition. Using 27”black braided hose with a 360-degree inline swivel. And a reliable 8701 first-stage, it provides excellent air supply underwater.
-
YOKE-

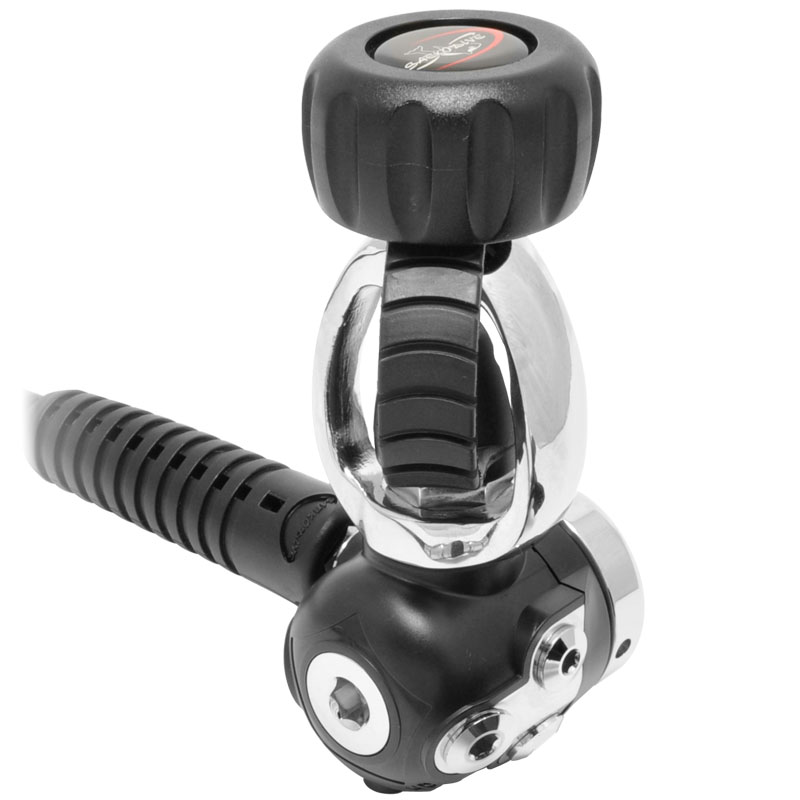

8701 First Stage:
• Adjustable balanced diaphragm
• Two high pressure and four low pressure ports -
DIN-

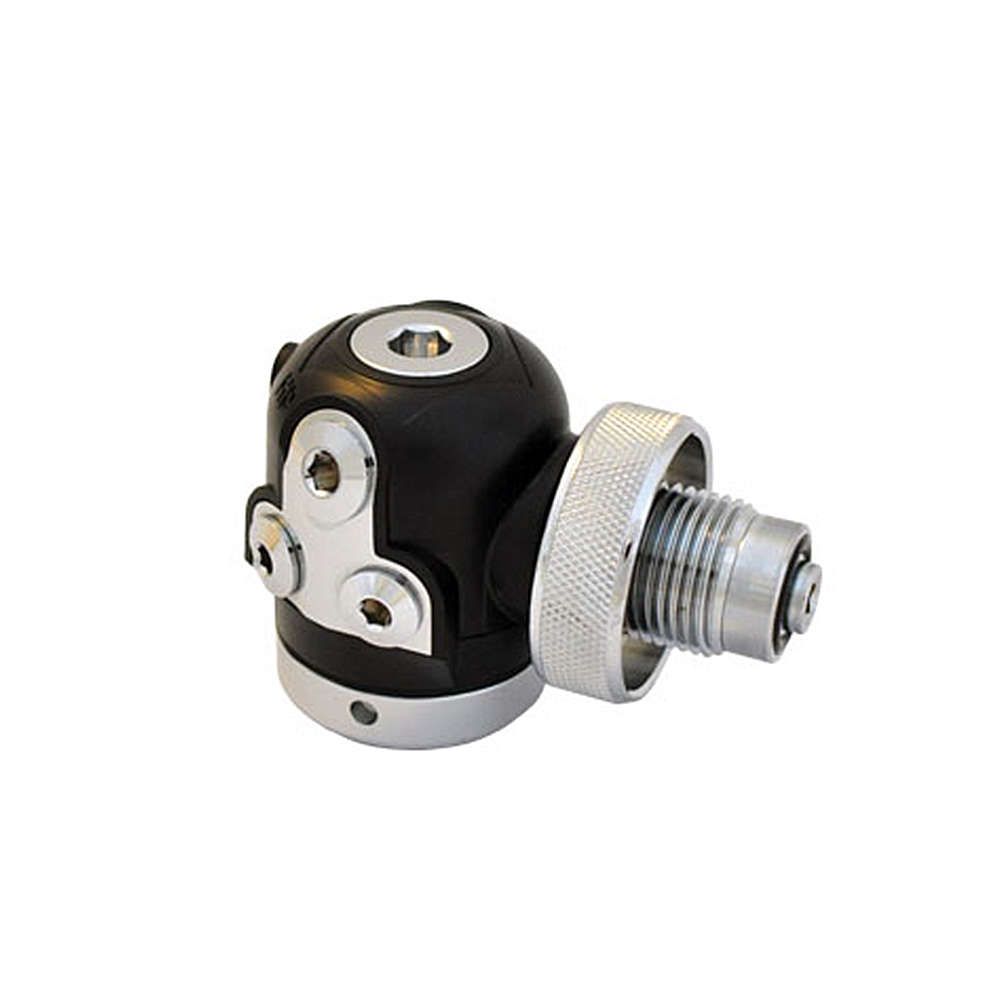

8701 First Stage:
• Adjustable balanced diaphragm
• Two high pressure and four low pressure ports -

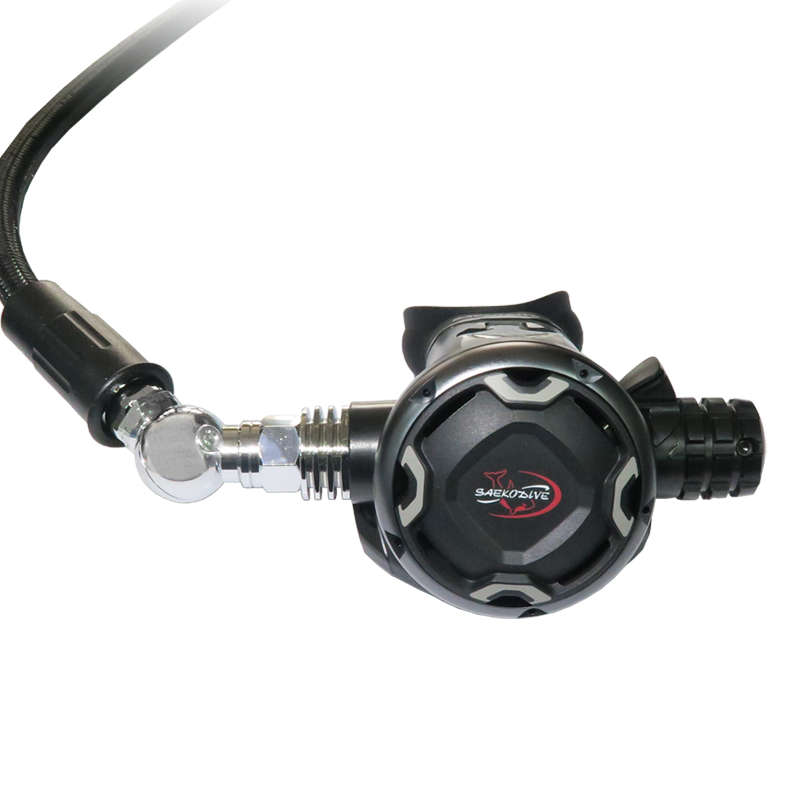

8517 Second Stage
• 360-degree inline swivel
• Second stage with a 27” black braided hose
• Pneumatically balanced design
• Dive / Pre-dive switch and adjustment knob
• Integrated purge button
• Anodized aluminum cover ring
• Black silicone mouthpiece with eminent ripples
• Weight (without hose): 210g
• Dimensions (front profile): 6.8 cm (approx.2.67”)
• Factory set inhalation effort: 1.1 CIW
1. The first stage should be kept clean. Dust or sea salt may erode and cause air to be affected.
2. Every time you are diving, please avoid the regulator falling or being stressed by heavy objects. Otherwise, the first stage will be easily deformed and the second head will be broken and cause a malfunction.
3. Every time after the end of the dive, remember to use the remaining gas to spray dry and cover the protective cover to prevent the sea salt from accumulating on the air inlet and causing failure.
4. To clean the regulator, after completing the above steps, rinse or soak with water and dry in the shade.
5. Please keep it in a cool, dry place, avoid direct sunlight.
